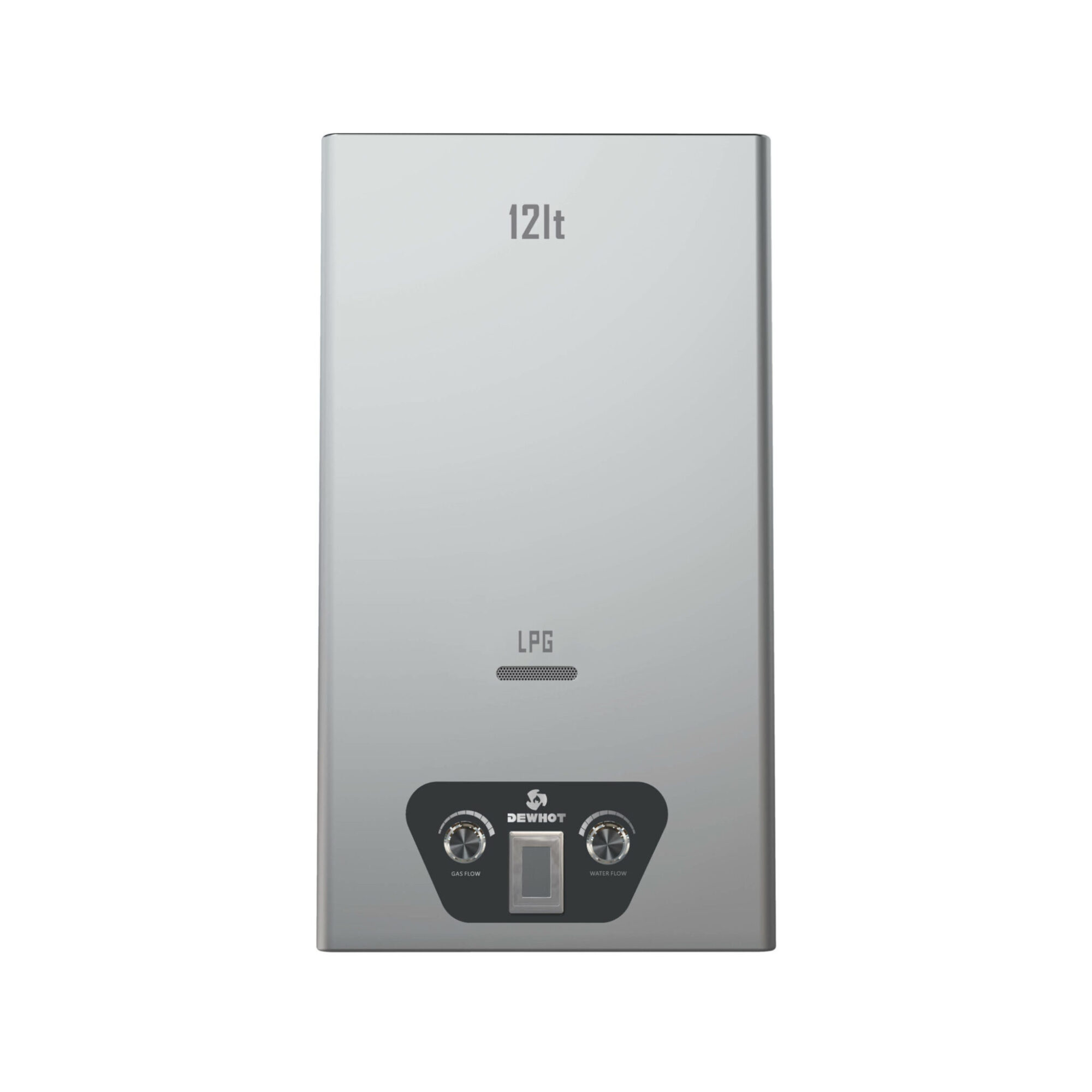

Dew Hot 12L Stainless Steel Diaphragm Activated Gas Geyser (Type D)

Requires no electricity – flame ignition and geyser function are battery operated
84% energy efficiency
Neat and compact
Stainless steel cover
LCD temperature display
Flame failure safety device
Anti-freeze function

Technical Geyser Specifications
Max gas pressure – 2.8 kPa
Max gas consumption – 1.86 kg / hour
Rated Input – 24 Kw
Water pressure – 50-500 kPa
Water Output (min/max) – 6L – 12L / min
Unit weight – 8.0 Kg
Unit size – 685 x 340 x 175 mm
Packaged weight – 9.35 kg
Packaged size – 710 x 395 x 210 mm
Gas Type LPG

TYPE D
For outdoor use under a cover

If a Gas Geyser is installed outside must be installed with weather box to protect the appliance against extreme weather and damage. The warranty on the appliance will be void if it is not installed with weather box when installed outdoors.

These boxes are designed to allow the hot air that is released by the unit to escape so that they do not over heat and cut out.

In extreme weather areas we recommend using a flue. If your geyser uses a flue then you will need a cover that has a flue roof.
